Handle colour
Black
Color
--
Number of lower hinges
2
Assembly instructions
Yes
Eligibility Extended warranty 5 years
No
Height
148 cm
Eligibility Extension of warranty 10 years
No
Finishing
Mast
Warranty
2 an(s)
End stop
2
Handle colour
Black
Color
--
Number of lower hinges
2
Assembly instructions
Yes
Eligibility Extended warranty 5 years
No
Height
148 cm
Eligibility Extension of warranty 10 years
No
Finishing
Mast
Warranty
2 an(s)
End stop
2
Type of lock
5 Keys
Pivoting system
Ball bearing
Width between pillars
303.7 cm
Frame material
Aluminium
Recommended number of persons for assembly
2
Top cover cap
Yes
Stud thickness
1.4 mm
Type of filling
Full
Width
298.7 cm
Available in sliding
Yes
Compatible engines
Yes
Handle material
Aluminium
Assembly time
8 h
Sleeper Section
77*30 mm
RAL
7016
Blade section
155*15 mm
Operating clearance
30 mm
Amounts Section
78*47 mm
Thickness of the blades
1.2 mm
Locking system
Barrel lock
Sleeper thickness
2 mm
Supplied accessories
Yes
Central stop
Yes
Minimum pillar height
150 cm
Number of upper hinges
2
Main material
Aluminium
Opening system
Fighting
Compatible motorization type
With articulated arm and jacks
Pattern / Design
CARPATIA
Opening direction
Towards the house, See Technical diagram
Rod assembly
Self-drilling screws
Stud/rail assembly
Self-drilling screws

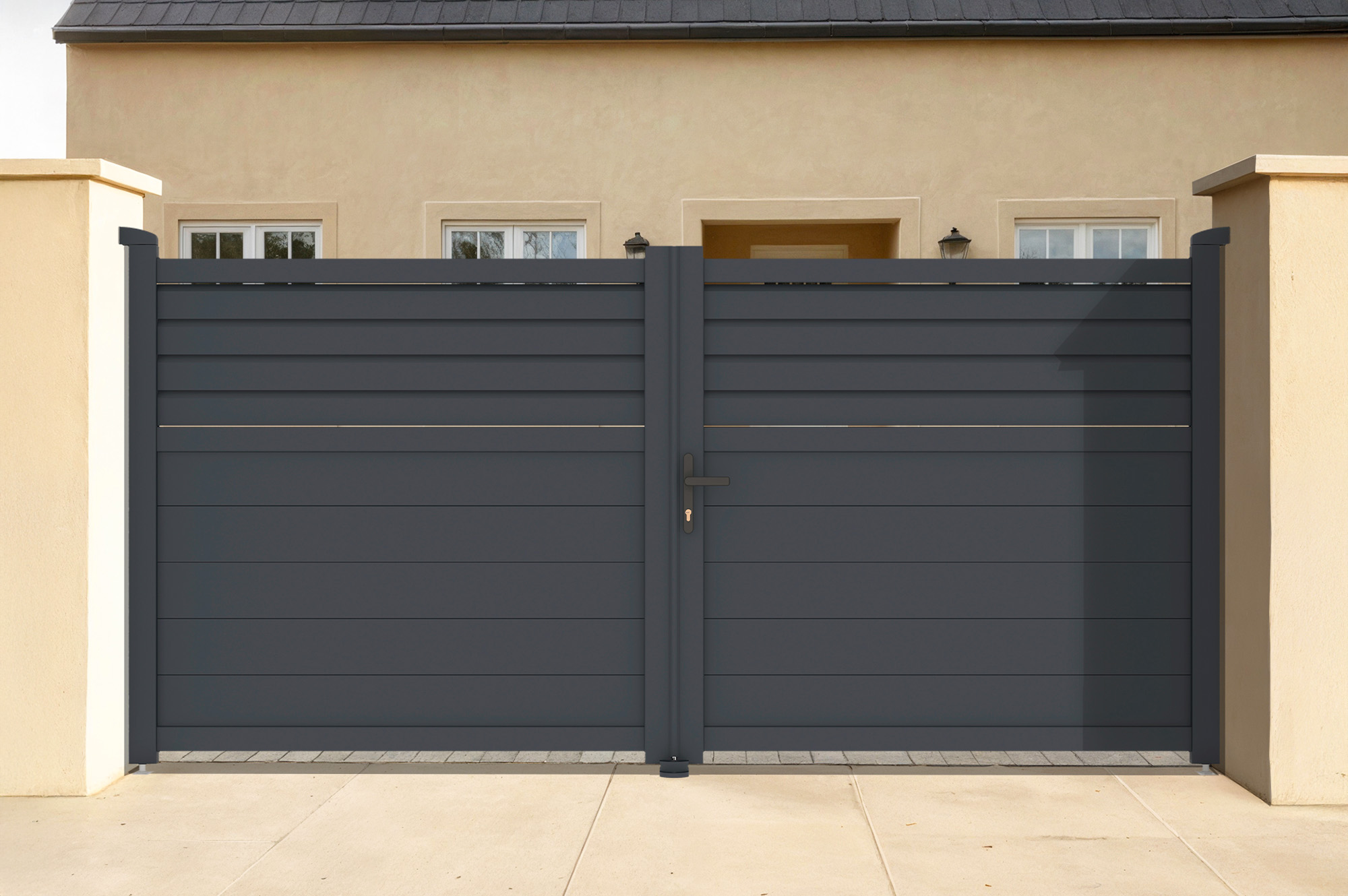

Discover the CARPATIA aluminum swing gate. Its modern semi-openwork design provides a large concealment area for more privacy, while maintaining a slight openwork on its upper part.
The range of semi-openwork swing gates is available at a good price to delineate and enhance your exterior.
Description: Horizontal semi-perforated straight swing gate
Material: Aluminum
Color: Anthracite gray RAL 7016
Dimensions: Width 300 cm x Height 145 cm
Width required between pillars: 305 cm
Minimum height of pillars: 160 cm
This gate kit to assemble and install by yourself contains:
- 8 aluminum blades (Height 16 cm)
- 2 reinforced blades to motorize your gate (Height 16 cm)
- 8 louvered blades in powder-coated aluminum (Height 10 cm)
- 2 upper hinges mounted on ball bearings
- 2 lower hinges
- 1 barrel lock
- 1 handle (Black color)
- 5 keys
- 1 automatic central stop
- 2 receiving stops
- Screws
Posts not included.
If you wish to motorize your swing gate, promotional packs are offered to you by Casanoov in the “Swing gate” category.
You will find promotional packs offering you a set consisting of a swing gate of your choice accompanied by the appropriate motorization.
If your installation requires pillars, promotional packs are also offered to you containing an aluminum swing gate of your choice, accompanied by two aluminum posts adapted to the chosen entrance gate.
The CARPATIA model is also available in other dimensions.
Also available in sliding version.
Delivered as a kit.
Clear instructions, quick and easy assembly.
You can automate the gate with a swing gate motorization.
Find all the characteristics in the technical sheet.
To further adapt your swing gate to your project, all our swing gates have the advantage of being able to be cut in their width (for an asymmetrical design for example or a narrower entrance)
Welcome to Casanoov!
Specializing in the online sale of equipment dedicated to the home environment, Casanoov makes it a point of honor to offer you a complete offer to delimit your exterior according to the latest market trends at affordable prices. Ultra competitive prices.
Quality at the right price! This is Casanoov's motto.
Discover our wide range of aluminum swing gates, sliding gates, gates and fences, the latest trend in terms of material.
All our products have been thought out and designed in kit form.
Easy and quick to install, assembling your Casanoov gates and fences yourself will be child's play.
All our models have been designed to combine both safety and aesthetics.
Casanoov offers you offers the choice to meet all your desires and requirements: classic models with full filling, semi-perforated, perforated or ultra perforated (barred) or more modern with our design models. At Casanoov, everything is done to satisfy you!
Our design models are inspired and designed in France, they are available in 6 variations and each has unique decorative plates, designed by us for you.
Choose the range that best suits you for a modern exterior that suits you.
And for an even more modern exterior, think about automating your entrance and browse our category of motorization which offers you automations for swing and sliding gates adapted to your needs.
Also discover all our accessories for a harmonious exterior, such as our aluminum posts in colors matching our gates, gates and garden fences.
To make your choice easier, you have all the technical information as well as visuals in situation on all of our product sheets.
Payments are secure and delivery is free. Enjoy and happy shopping!
Download the assembly instructions (PDF)
