Compatible pillar spacing
351,5 - 357,5 cm
Wind resistance
55 km/h
Height
176 cm
Width
350 cm
Main material
Aluminium
Colour
Charcoal grey
RAL
7016
Finishing
Powder coating
Type of filling
Full
Pattern / Design
CARPATIA
Compatible pillar spacing
351,5 - 357,5 cm
Wind resistance
55 km/h
Height
176 cm
Width
350 cm
Main material
Aluminium
Colour
Charcoal grey
RAL
7016
Finishing
Powder coating
Type of filling
Full
Pattern / Design
CARPATIA
Opening system
Swing gate
Opening direction
Towards the house, See Technical diagram
Compatible engines
Yes
Compatible motorization type
With articulated arm and jacks
Frame material
Aluminium
Width between pillars
355 cm
Minimum pillar height
190 cm
Operating clearance
30 mm
Pivoting system
Ball bearing
Blade section
160*15 mm
Thickness of the blades
1.2 mm
Amounts Section
78*47 mm
Stud thickness
1.5 mm
Sleeper Section
70*30 mm
Sleeper thickness
1.3 mm
Stud/rail assembly
Self-drilling screws
Locking system
Cylinder lock
Handle material
Aluminium
Handle colour
Black
Type of lock
Keys (5)
Rod assembly
Self-drilling screws
Supplied accessories
Yes
Number of upper hinges
2
Number of lower hinges
2
Central stop
Yes
End stop
2
Top cover cap
Yes
Assembly instructions
Yes
Assembly time
8 h
Recommended number of persons for assembly
2
Warranty
2 an(s)
Eligibility Extended warranty 5 years
No
Eligibility Extension of warranty 10 years
No
Available in sliding
Yes
Weight of package No.1
26.5 kg
Weight of package No.2
24.5 kg
Weight of package No.3
16.0 kg

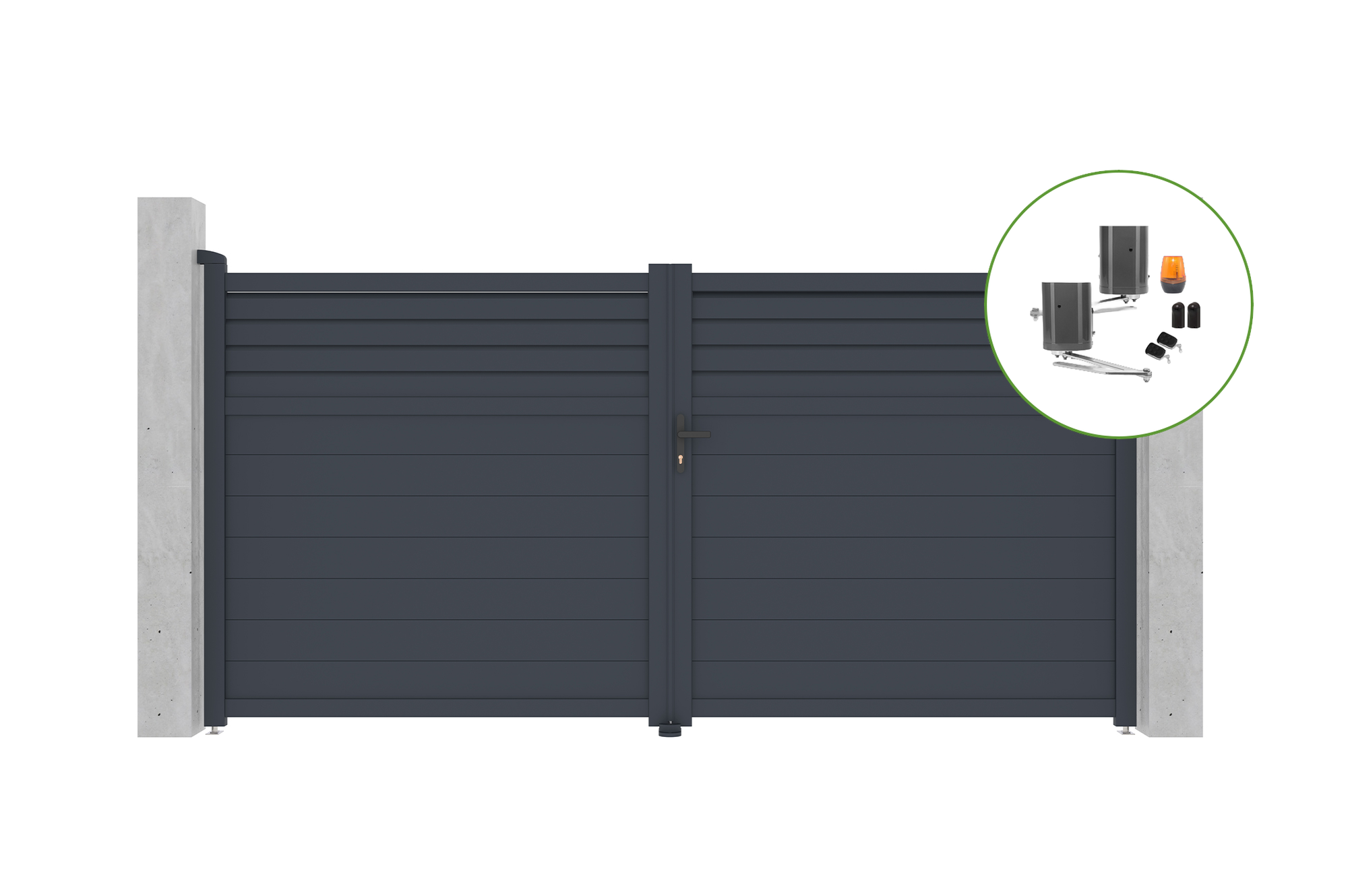

Discover the CARPATIA aluminum swing gate. Its modern semi-openwork design provides a large blackout area for more privacy, while keeping a slight openwork on its upper part.
The range of semi-openwork swing gates is available at a good price to delimit and enhance your exterior.
Description: Horizontal semi-perforated straight swing gate
Material: Aluminum
Colours: Anthracite gray RAL 7016
Dimensions: Width 350cm x Height 176cm
Required width between pillars: 355 cm
Minimum height of the pillars: 190 cm
This gate kit to assemble and install by yourself contains:
- 2 reinforced blades to motorize your gate
- 2 upper hinges mounted on ball bearings
- 2 lower hinges
- 1 cylinder lock
- 5 keys
- 1 automatic central stop
- 2 reception stops
- Fasteners
Poles not included.
If you wish to motorize your swing gate, promotional packs are offered to you by Casanoov in the “Swing gate” category.
You will find promotional packs offering you a set consisting of a swing gate of your choice accompanied by the appropriate motorization.
If your installation requires pillars, promotional packs are also available to you containing an aluminum swing gate of your choice, accompanied by two aluminum posts adapted to the chosen entrance gate.
The CARPATIA model is also available in other sizes.
Also available in sliding version.
Delivered as a kit. Clear instructions, simple and quick assembly.
You can automate the gate with a swing gate operator.
Find all the characteristics in the technical sheet.
Download the assembly instructions (PDF)
